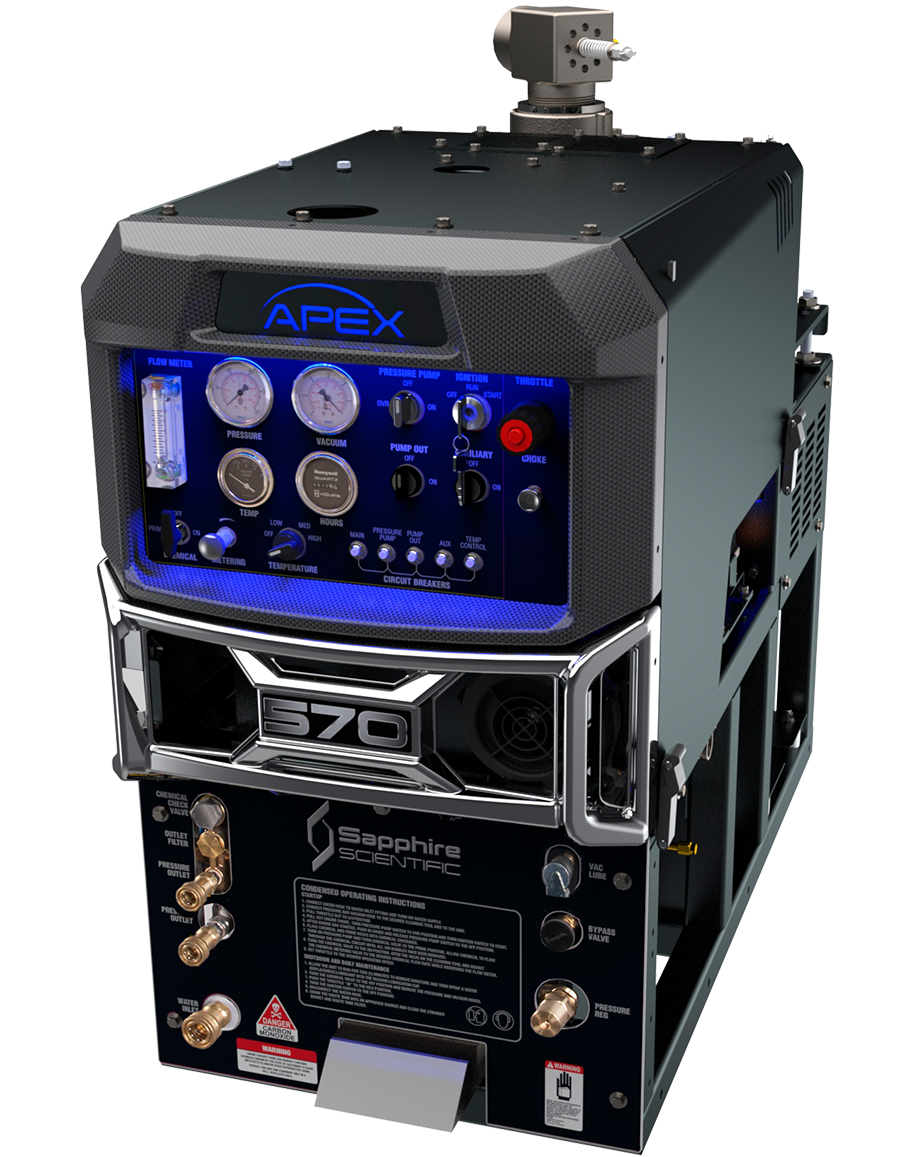

Sapphire Scientific Apex 570 Truck Mount

The Sapphire Scientific Apex 570 Truck Mount is powered by a liquid-cooled cast iron Kubota engine, this truckmount uses a patented triple-source thermal well system to deliver consistent high heat.

Ceramic coating lowers the heat radiation on all exhaust components by more than 30%  and extends truckmount life and helps to keep van interiors cooler, (Not available in California).

                                                                                                FEATURES:

*Quieter Helical Tri-Lobe HF 408 Blower produces less vibration and ensures better dry times
*Through-frame drive belt cooling significantly reduces downtime by extending belt life
*Patented thermal well design incorporates tube-n-shell heat exchanger to maximize heat transfer from engine to solution.
*Easy-to-remove access panel and slide hoods allows for quick service
*Narrowest liquid-cooled slide-in on the market

SPECIFICATIONS:

*Power: Kubota WG972 31 HP liquid cooled cast iron gasoline engine operating at 3000 RPM
*Vacuum pump: Vacuum at 13in. and flows up 455 CFM
*Solution pump: General HTS2016S producing up to 1500 PSI and 5 GPM at 1500 RPM
*Waste tank: 90 Gal. marine grade aluminum.
*Dimensions: Console (W x H x D) 22x43x50 in.
*Frame construction: 0.125 in. x 2in. powder-coated aluminum box tubing.
